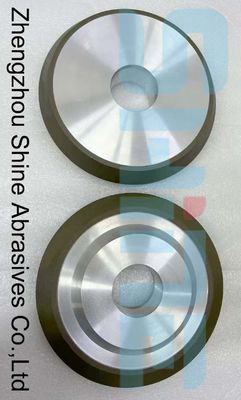

Name: Hybrid bond CNC diamond wheel for high-performance flute grinding
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2 1V1
Price: 50.00 USD
Availability: InStock

홈 제품 소개 CNC 밀링 휠

Hybrid bond CNC diamond wheel for high-performance flute grinding

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Shine Abrasives
인증:	ISO
모델 번호:	4V2 1A1 14A2 1V1

결제 및 배송 조건:

최소 주문 수량:	2 개 PC
가격:	FOB
포장 세부 사항:	한 장은 종이 상자에
배달 시간:	5 일
지불 조건:	l/c, t/t
공급 능력:	1주일에 1000 PCS

접촉

상세 제품 설명

애플리케이션:	CNC 기계	속도:	6000rpm
색상:	은	최대 압력:	5MPA
크기:	6 인치	아버 크기:	7/8 인치
최대 온도:	150C	다이아몬드 반지 크기:	6x6mm
채권 유형:	하이브리드	노예:	수지
HS 코드:	6804211000	능률:	빠른
최대 속도:	100m/s	최대 회전량:	6000rpm
경도:	높은
강조하다:	Hybrid bond CNC diamond wheel , CNC flute grinding wheel , high-performance diamond grinding wheel

Hybrid bond CNC diamond wheel for high-performance flute grinding

Hybrid bond CNC diamond wheel for high-performance flute grinding.Hybrid bond is Resin Bond, Metal Bond, and or processing methods to create a Hybrid that encompasses enhanced properties to deliver high performance results for some of manufacturing’s toughest grinding applications.

Wheel sizes form:

Diameter of D	Diamond depth of U	R	X	H
50mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
75mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
100mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
125mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
150mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
175mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
200mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize

Others sizes are available per requested.

*Grinding, PCD, PCBN, CVD, MCD, hard alloy and other cutting tools

*Bonding agents: ceramic bonding agents, resin bonding agents, metal bonding agents

*The particle size can reach up to 10000#

*Cutting edge quality less than 5 microns

*Provide dressing wheels to trim PCD grinding wheels
*Precision grinding: capable of achieving high accuracy and surface finish
*The bowl is mainly used for tool sharpening and surface milling, suitable for grinding metal and non-metal hard and brittle material with low iron content.
