| 원래 장소: | 중국 |
| 브랜드 이름: | Shine Abrasives |
| 인증: | ISO |
| 모델 번호: | 4V2 1A1 14A2 9A3 |
| 최소 주문 수량: | 2개 |
|---|---|
| 가격: | FOB |
| 포장 세부 사항: | 한 장은 종이 상자에 |
| 배달 시간: | 근무일 기준 5일 |
| 지불 조건: | 신용장, 전신환 |
| 공급 능력: | 1주일에 1000 PCS |
| 휠 종류: | 똑바로 | 두께: | 2-4mm |
|---|---|---|---|
| 최대 압력: | 5Mpa | 아버 크기: | 7/8 인치 |
| HS코드: | 6804211000 | 재료: | 산화알루미늄 / 탄화규소 / 다이아몬드 / CBN |
| 능률: | 빠른 | 유형: | 단일 행 |
| 용법: | 연마 | 내구성: | 높은 |
| 바퀴 지름: | 100mm - 400mm | 본드타입: | 유리화 / 수지 / 금속 |
| 내경: | 12.7mm - 32mm | 크기: | 4-12 인치 |
| 최대 RPM: | 6000rpm | ||
| 강조하다: | hybrid-bond diamond wheel for carbide drill bits,CNC grinding wheel for flute grinding,diamond grinding wheel with hybrid bond |
||

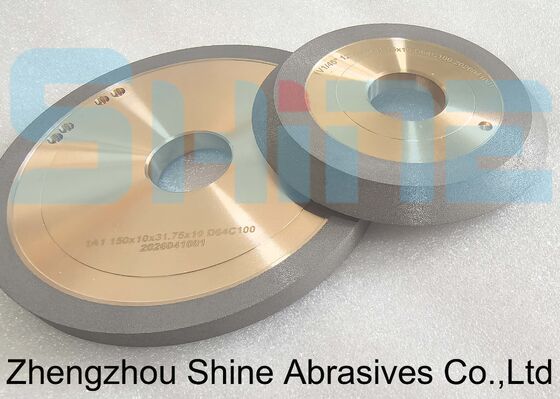

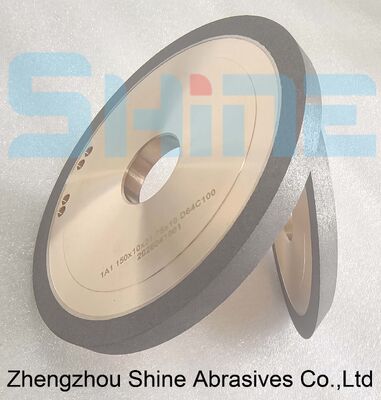

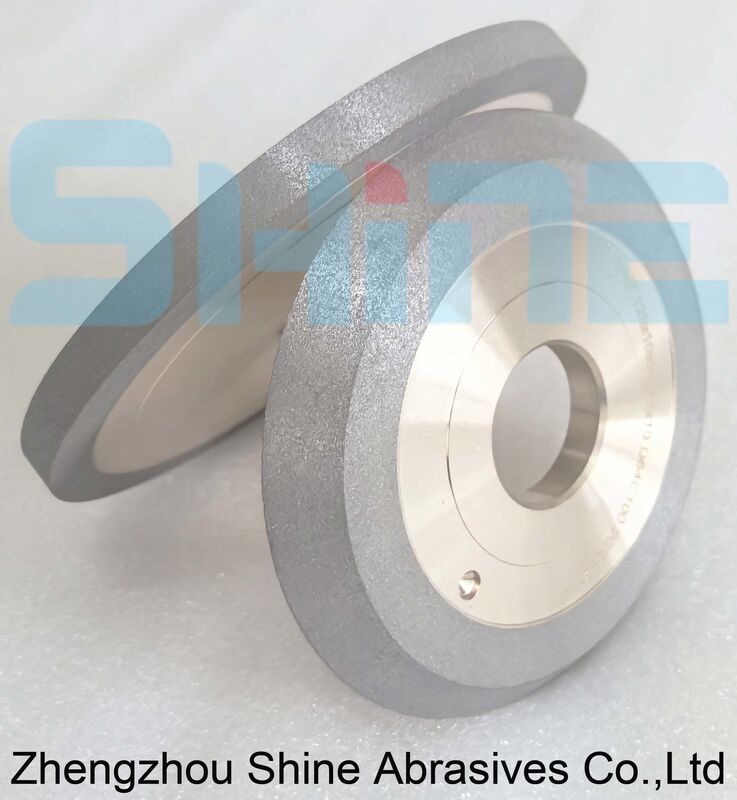

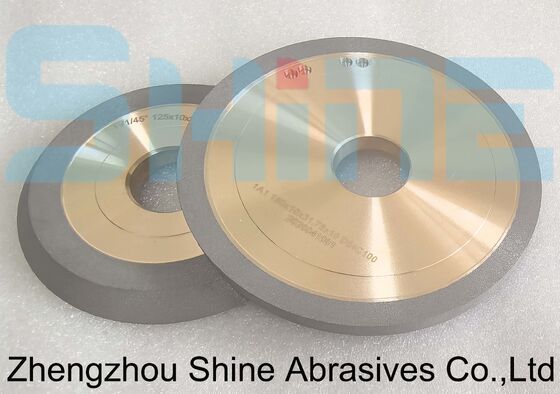

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC).hybrid bond diamond wheel uses a diamond layer held by a mix of binders/materials (commonly a resin + metal/plastic matrix, or a bond system engineered to combine properties). For carbide drill bit fluting/fultting (I assume you mean flute grinding/fulting), these wheels are usually specified for profile/helix grinding and flute regrind where you need consistent geometry and smooth chip-breaking performance.
Technical Parameters:
| Parameter | Detail |
|---|---|
| Package | Carton Box |
| Shape | Cup, Straight, Cylindrical, Etc. |
| Warranty | 1 Year |
| Material | Carbon Steel |
| Max Pressure | 5MPa |
| Bond | Vitrified, Resin, Metal, Etc. |
| Application | CNC Grinding, Flute Grinding, Gash Grinding, Relief Angle Grinding |
| Max Temperature | 150℃ |
| Size | 4-12 Inch |
| Max Speed | 100 m/s |
Wheel contacts the carbide along the flute relief/profile.
CNC controls infeed, feed rate, wheel speed, and dwell time to shape flutes consistently.
Coolant/air blast removes swarf and controls temperature.
The hybrid bond is designed so the wheel maintains shape while still releasing fresh diamond when needed (depending on how it’s formulated.
